PVC Badminton Court Mat—Training

Gem embossed is designed to perform safely and effectively in ‘multi-purpose’ indoor sports venues, especially for badminton venues. Its superior shock absorbing performance protect the players’ joints from impact injuries, as well as enables players to perform at their best.

FEATURES:

* Popular embossed for sports venues

* Provides good surface friction and shock absorption

* Better dimensional stability performance

* Easy for installation, maintenance, cost effective

*Game Lines ready for instant use

PARAMETER:

Roll Length: 15m/Customized

Roll Width: 1.8m

Thickness: 4.5/6.0/7.0/8.0mm

Color available: Green, Red, Blue, Grey, Orange, Pink

A standard Court Size : 15m*1.8m*4rolls

Inquiries

Badminton Court Mat Parameters

Thickness	Surface	Wear Layer	Stable Layer	Color	Warranty（Y）
4.5mm	Gem Embossed	1.0mm	Fiber Glass+ mesh	Green/Blue/Red/Orange/Grey/Pink	3-6⁺
6.0mm		1.2mm	Fiber Glass+ Coarse grid mesh		8-10⁺
7.0mm		1.5mm	Fiber Glass+Densified mesh		10-15⁺
8.0mm		1.5mm	Fiber Glass+Densified mesh		10-15⁺

Gem 7mm
FLOOR DESCRIPTION
GENERAL	DESCRIPTION	STANDARD	UNIT	RESULT
CONSTRUCTION	Material			PVC
	Total thickness		mm	7
	Wear layer thickness		mm	1.5
	Structure of the foam backing		–	Multi-density layers.
	Back embossing			Honey comb
PRESENTATION	Roll width	EN ISO 24341	m	1.8 m
	Standard roll length	EN ISO 24341	m	18m/21m/Customized
	Weight	EN ISO 23997	g/m2	4600
SURFACE	Surface protection			GW Tech
EN 14904 STANDARD VALUES
SPORT EN 14094	DESCRIPTION	STANDARD	CRITERIA	UNITS	GW Gem 7mm
SPORT PROPERTIES	Vertical deformation	EN 14809	≤ 5.0	mm	1.1mm
	Shock absorbtion (Force Reduction)	EN 14808	25~75	%	26%
	Friction coefficient	EN 13036-4	80-110	–	94
	Ball Bounce	EN 12 235	≥ 90	%	99
TECHNICAL CHARACTERISTICS	Indentation resistance	EN 1516	≤0.5	mm	0.2
	Rolling load	EN 1569	≤0.5	mm	0.2
	Impact resistance	EN 1517	≤0.5	mm	0.3
	Abrasion resistance	EN ISO 5470-1	≤ 1000/1000	mg/r	63
	Specular Gloss	EN ISO 2813	≤ 45	%	10%
	Fire resistance	EN 13501-1	–		Ffl

Gem 8mm
FLOOR DESCRIPTION
GENERAL	DESCRIPTION	STANDARD	UNIT	RESULT
CONSTRUCTION	Material			PVC
	Total thickness		mm	8
	Wear layer thickness		mm	1.6
	Structure of the foam backing		–	Multi-density layers.
	Back embossing			Honey comb
PRESENTATION	Roll width	EN ISO 24341	m	1.8 m
	Standard roll length	EN ISO 24341	m	18m/21m/Customized
	Weight	EN ISO 23997	g/m2	4720
SURFACE	Surface protection			GW Tech
EN 14904 STANDARD VALUES
SPORT EN 14094	DESCRIPTION	STANDARD	CRITERIA	UNITS	GW Gem 7mm
SPORT PROPERTIES	Vertical deformation	EN 14809	≤ 5.0	mm	1.2
	Shock absorbtion (Force Reduction)	EN 14808	25~75	%	31%
	Friction coefficient	EN 13036-4	80-110	–	95
	Ball Bounce	EN 12 235	≥ 90	%	98
TECHNICAL CHARACTERISTICS	Indentation resistance	EN 1516	≤0.5	mm	0.2
	Rolling load	EN 1569	≤0.5	mm	0.2
	Impact resistance	EN 1517	≤0.5	mm	0.2
	Abrasion resistance	EN ISO 5470-1	≤ 1000/1000	mg/r	37
	Specular Gloss	EN ISO 2813	≤ 45	%	8%
	Fire resistance	EN 13501-1	–		Ffl

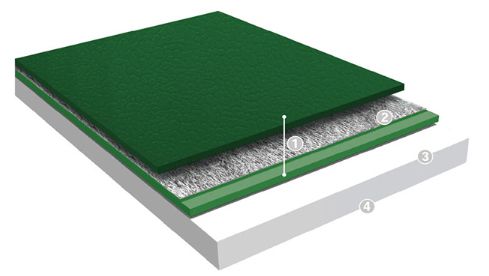

Flooring Structure

Top Layer
1.2mm wear resistant layer handles scratches. heavy traffics and loads.Offering good curface friction. easy maintenance without ctripping

Stable Layer
High density Polyester Mesh and Glass Fabric build-in inforcement layer makes the court fight for longer period, gives superior dimensional stability

Stability

PVC Foams provides optimal shock absorption while getting back to its original chape Back Soal

Back Seal
High density goometric textured bottom holds tightly to the ground and decrease additional shocks to knee.ankle
